Rohloff E-14 Trigger Unit - Under Handle bar mounted shifter unit

A new shifter from Rohloff for alternative setup. The shifting buttons/lever is underneath the handlebar instead of on it. This can save room for other items and the larger buttons are also easier to use with gloves on

--

See more - https://www.rohloff.de/en/service/handbook/e-14/trigger

Short-form Installation Instructions

1. Only compatible with Ø 22.2 mm (Ø 7/8″) handlebars.
2. Right-hand only. Mount between brake lever and grip.

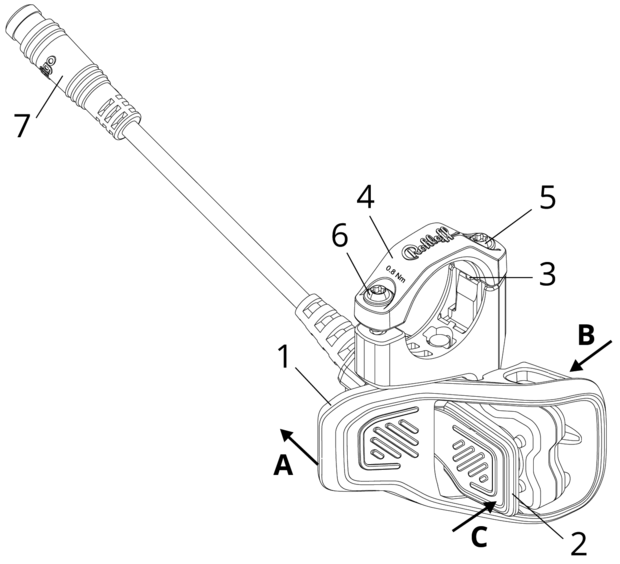

3. Clamp (4) and trigger body (3), formed to avoid incorrect assembly.
4. Slide E-14 trigger onto handlebar with E-14 cable exiting Trigger towards handlebar stem.
5. Ensure brakes can be applied without lever colliding with either Trigger or other handlebar-mounted components.
6. Insert the TX10 screw (5) first, and tighten to 0.8 Nm (0.589 ft/lb). Now insert the second TX10 screw (6) and also tighten to 0.8 Nm (0.589 ft/lb).
7. Connect the blue, 4-pole connector (7) with the 4-pole connector from the E-14 cable loom.
8. Test E-14 Trigger functionality.
